REANALYSIS OBS-SPACE DIAGNOSTICS
This is an html file containing diagnostics summary for the reanalysis project. Below are profile and time-series evolution plots for 21 observations kinds (see Contents). The results are split into 3 regions:
- Southern Hemisphere: LAT = [-90, -20]
- Tropics: LAT = [-20, 20]
- Northern Hemisphere: LAT = [20, 90]
For the vertical profiles, the results are calculated at:
- Pressure layers (hPa): 999, 925, 831, 687, 525, 400, 312, 250, 200, 150, 100, 55, 25, 8
- Height layers (m): 200, 750, 1405, 2775, 4675, 6560, 8285, 9830, 11410, 13470, 16435, 20890, 26525, 36245
For each observation kind, the root-mean-squared-error (RMSE) is plotted together with: (i) BIAS and (ii) TOTALSPREAD. The number of available, assimilated (evaluated) and rejected observations are also shown on the plots.
For more information, see our web site: DART-GROUP
Contents
- 1.a. ACARS_TEMPERATURE: bias
- 1.b. ACARS_TEMPERATURE: totalspread
- 2.a. ACARS_U_WIND_COMPONENT: bias

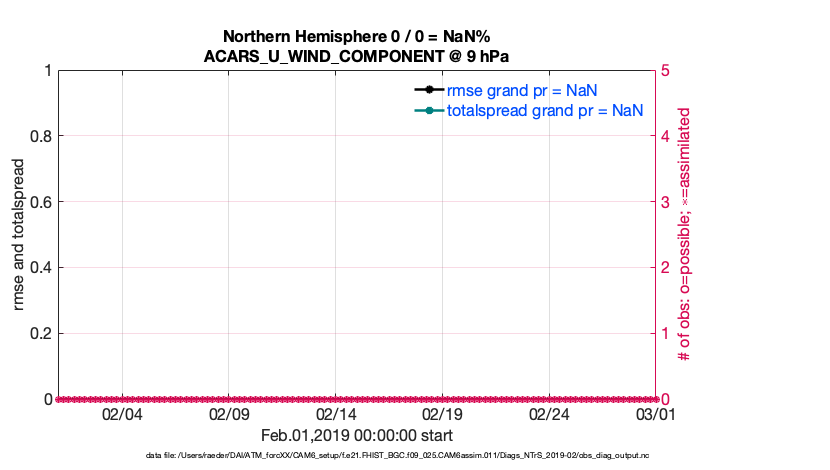

- 2.b. ACARS_U_WIND_COMPONENT: totalspread
- 3.a. ACARS_V_WIND_COMPONENT: bias

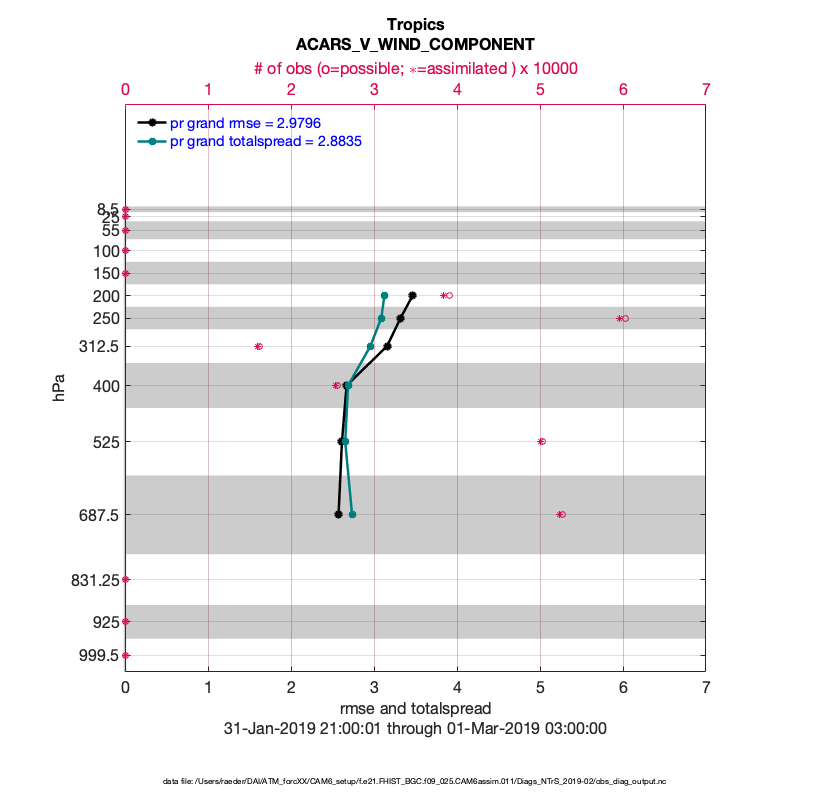

- 3.b. ACARS_V_WIND_COMPONENT: totalspread
- 4.a. ACARS_HORIZONTAL_WIND: bias
- 4.b. ACARS_HORIZONTAL_WIND: totalspread
- 5.a. AIRCRAFT_TEMPERATURE: bias

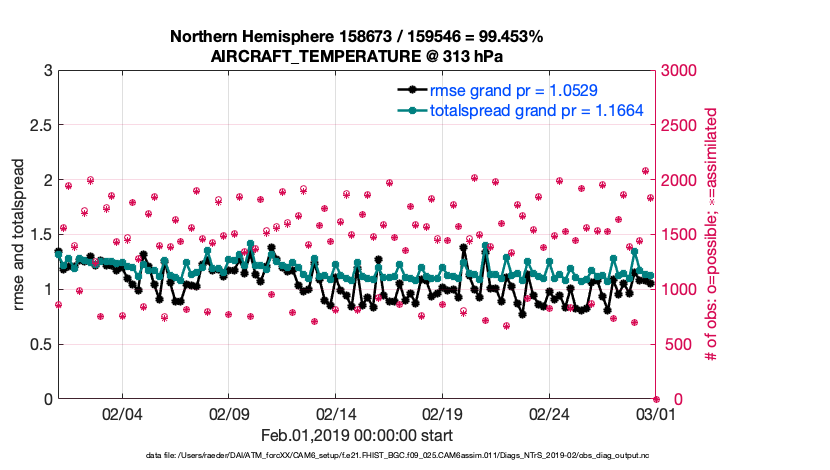

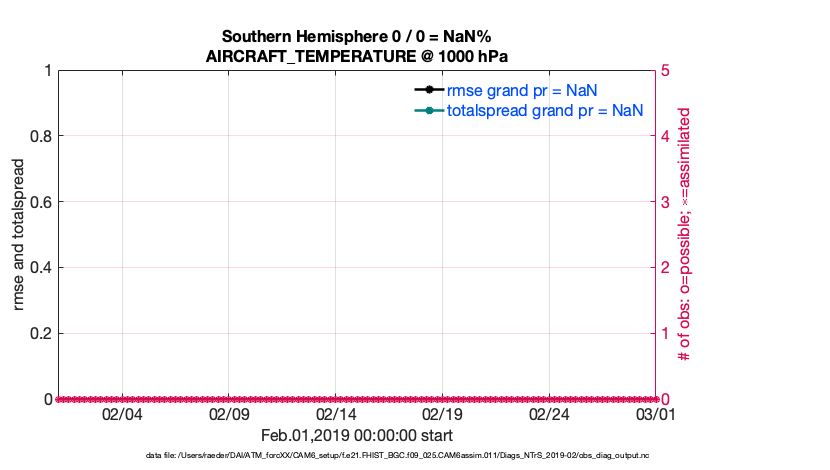

- 5.b. AIRCRAFT_TEMPERATURE: totalspread
- 6.a. AIRCRAFT_U_WIND_COMPONENT: bias
- 6.b. AIRCRAFT_U_WIND_COMPONENT: totalspread
- 7.a. AIRCRAFT_V_WIND_COMPONENT: bias
- 7.b. AIRCRAFT_V_WIND_COMPONENT: totalspread

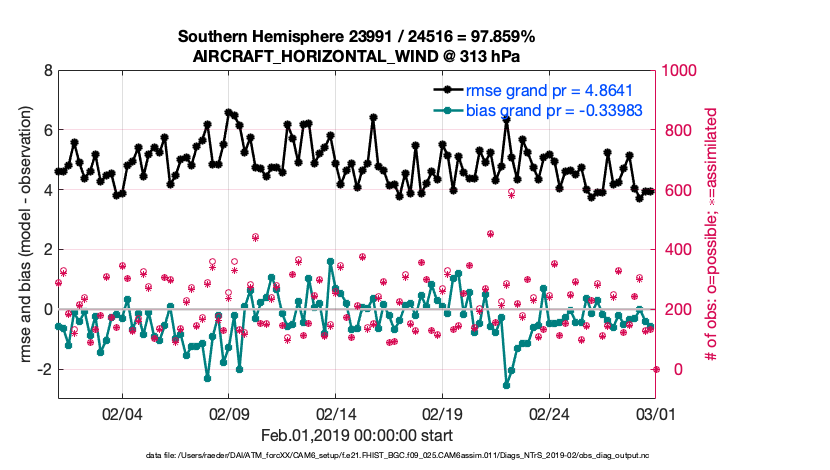

- 8.a. AIRCRAFT_HORIZONTAL_WIND: bias
- 8.b. AIRCRAFT_HORIZONTAL_WIND: totalspread
- 9.a. AIRS_TEMPERATURE: bias
- 9.b. AIRS_TEMPERATURE: totalspread

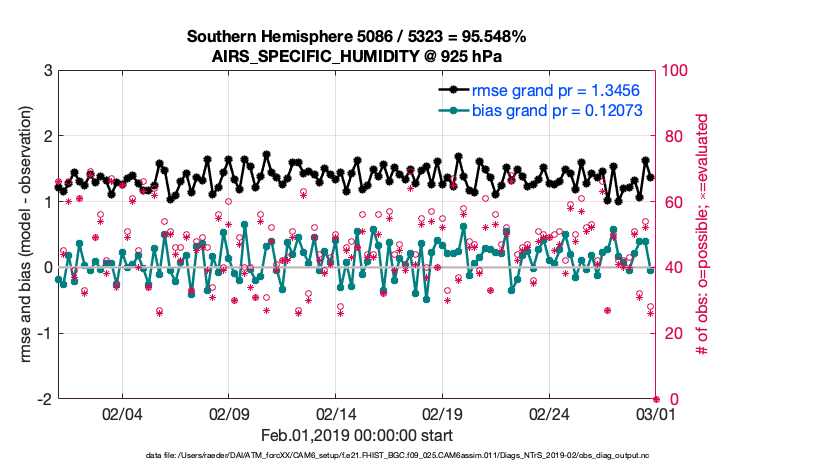

- 10.a. AIRS_SPECIFIC_HUMIDITY: bias
- 10.b. AIRS_SPECIFIC_HUMIDITY: totalspread

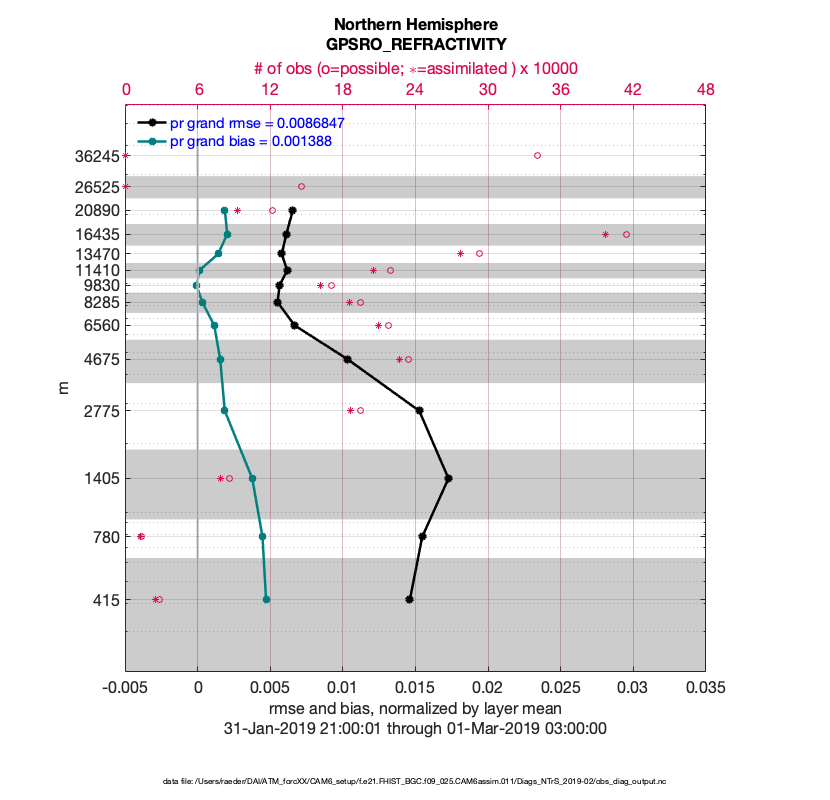

- 11.a. GPSRO_REFRACTIVITY: bias
- 11.b. GPSRO_REFRACTIVITY: totalspread
- 12.a. LAND_SFC_ALTIMETER: bias
- 12.b. LAND_SFC_ALTIMETER: totalspread
- 13.a. MARINE_SFC_ALTIMETER: bias
- 13.b. MARINE_SFC_ALTIMETER: totalspread
- 14.a. RADIOSONDE_TEMPERATURE: bias
- 14.b. RADIOSONDE_TEMPERATURE: totalspread
- 15.a. RADIOSONDE_U_WIND_COMPONENT: bias
- 15.b. RADIOSONDE_U_WIND_COMPONENT: totalspread
- 16.a. RADIOSONDE_V_WIND_COMPONENT: bias
- 16.b. RADIOSONDE_V_WIND_COMPONENT: totalspread
- 17.a. RADIOSONDE_SURFACE_ALTIMETER: bias
- 17.b. RADIOSONDE_SURFACE_ALTIMETER: totalspread
- 18.a. RADIOSONDE_SPECIFIC_HUMIDITY: bias
- 18.b. RADIOSONDE_SPECIFIC_HUMIDITY: totalspread

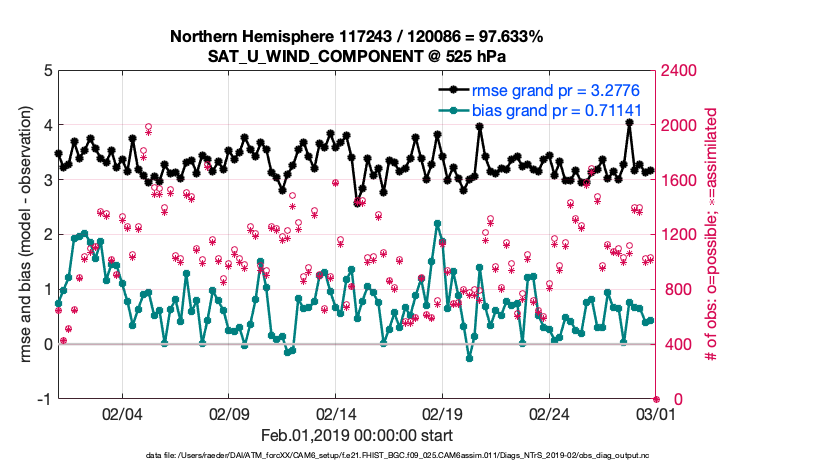

- 19.a. SAT_U_WIND_COMPONENT: bias
- 19.b. SAT_U_WIND_COMPONENT: totalspread
- 20.a. SAT_V_WIND_COMPONENT: bias
- 20.b. SAT_V_WIND_COMPONENT: totalspread
- 21.a. SAT_HORIZONTAL_WIND: bias
- 21.b. SAT_HORIZONTAL_WIND: totalspread
